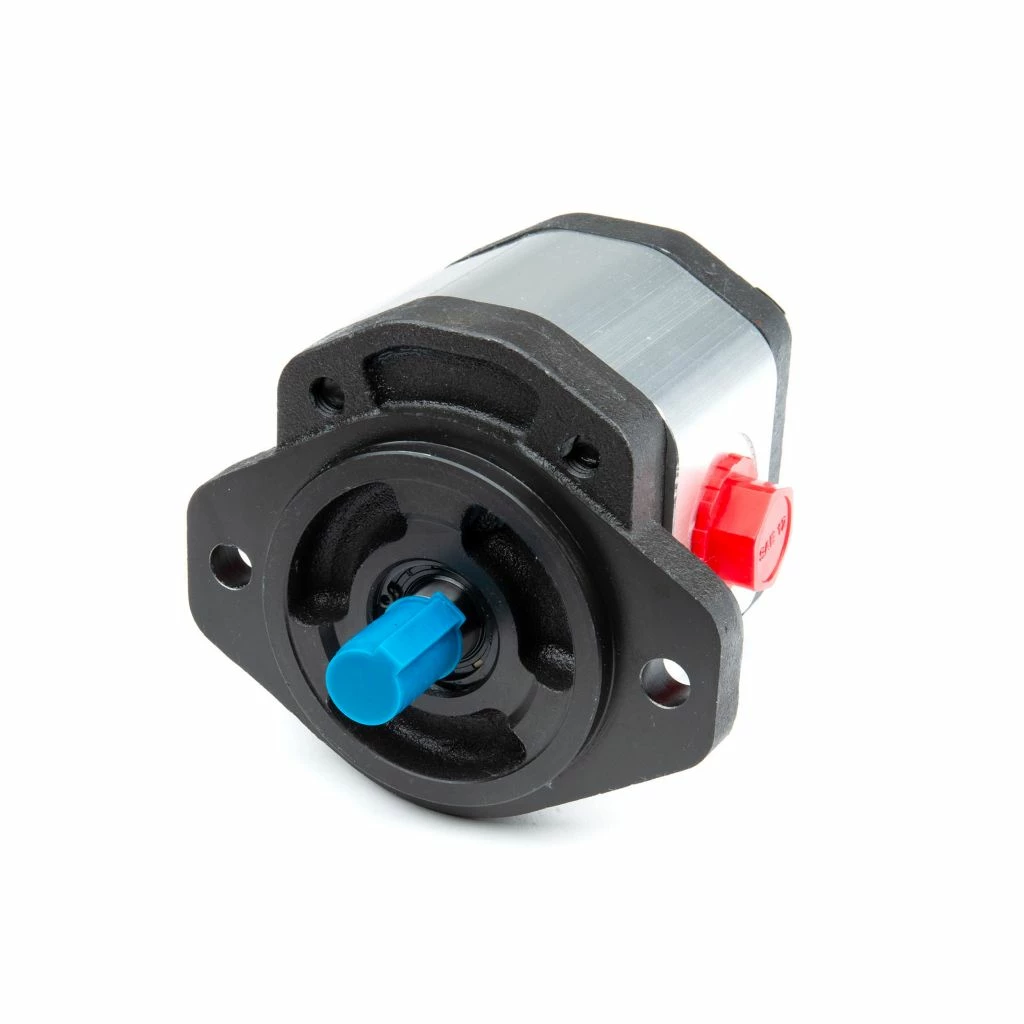

Chief Gear Pump, 3/4 Dia. Keyed Shaft, 1.53 CID, 11.9 @ 2,000 RPM, 3,000 PSI, CW Rotation, 252194

The Chief Gear Pump offers an aluminum body with cast-iron end plate construction and a high pressure hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev. (4 to 32 cm3/rev). The standard mounting flange is SAE A-2 bolt, and the standard drive shaft is a 5/8 inch diameter straight with 5/32 in. straight key.

• 175 deg F max temperature
• Filtration: 25 micron or better
• Oil Viscosity: 6 to 200 CST
• Inlet Pressure: 12 to 32 PSI ABS
• Oil Temperature: -25 to 80 deg C (-12 to 175 deg F)
• Ambient: -22 to 55 deg C (-8 to 130 deg F)
• 3/4 Dia. Keyed Shaft
• CW Rotation
• 3000 PSI
• 11.9 @ 2000 RPM
• 1.53 CID
• Aluminum body with cast iron end plate construction
• Hydraulic gear pump with 11 displacement sizes from 0.24 to 1.95 in3/rev (4 to 32 cm3/rev)
• Standard mounting flange on the Chief gear pump is SAE A-2 bolt
• Standard drive shaft is a 5/8 in. Dia. Straight shaft with 5/32 in. straight key

Note: This product may require up to 2 additional days for order processing prior to shipping
