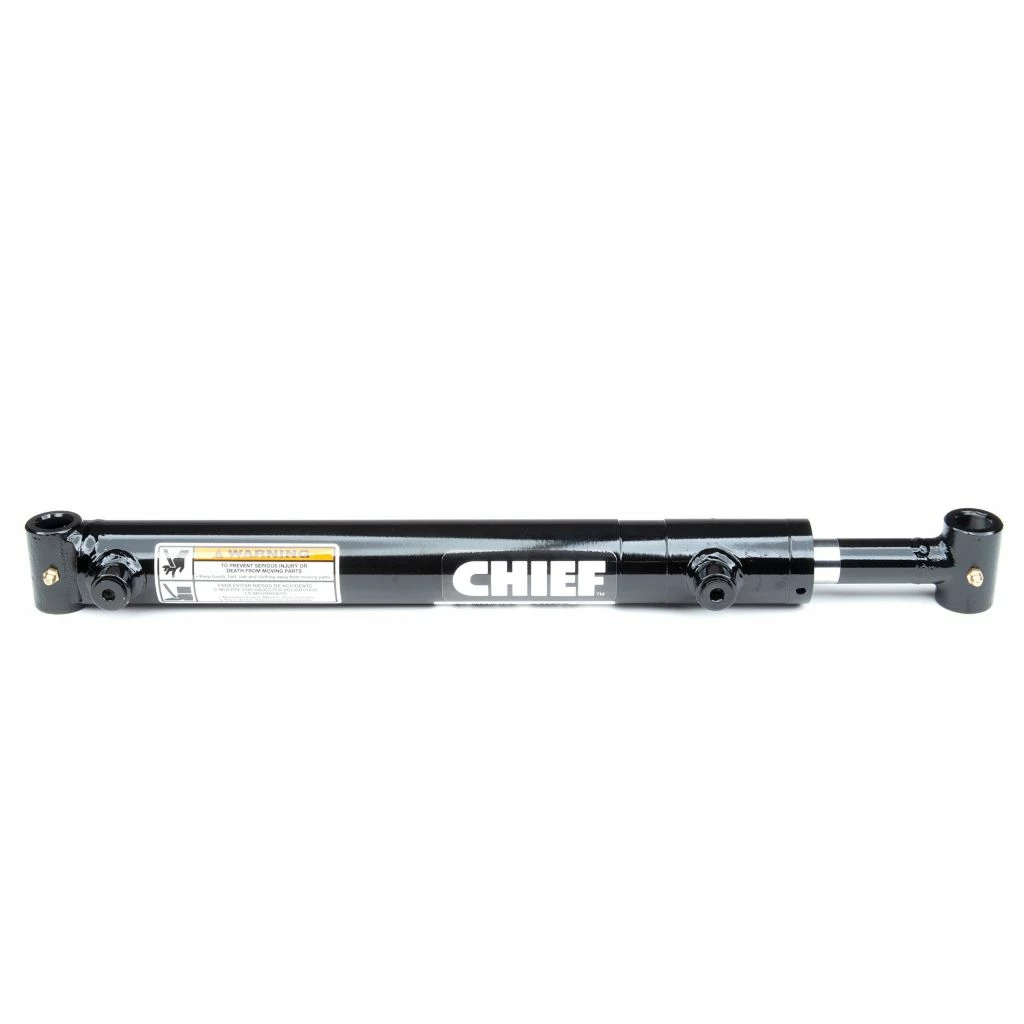

Chief LD Loader Welded Cylinder, 1.75 in. Bore x 18 in. Stroke, 1 in. Rod Diameter, 288606
$91.99
- The quality you expect, the service you deserve.
- Quality that lasts, prices that don't.
- 7 days free returns
- Shop with confidence, we guarantee quality.
- Ideal for construction, agricultural and other applications and make great replacement hydraulic cylinders
- Intended for use as double acting hydraulic cylinders
- Piston: ductile iron
- Gland: ductile iron
- Tube: honed steel
- Rod: hard chrome-plated
- End Mounts: cross-tubes
- Tube Seal: Buna O-ring with polytemp hytrel back-up
- Rod Seal: polyurethane U-cup
- Rod Wiper: polyurethane, snap-in
- Piston Seal: 755 with wear rings, (2 each) wear bearings
- All Seals: manufactured to USA specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Packaging: individually poly bagged welded hydraulic cylinders
- Small bore hydraulic cylinders
- 3,000 PSI operating range
Note: This product may require up to 2 additional days for order processing prior to shipping
| Brand | Chief |
|---|---|
| Material | Steel |
| Product Length | 9.25 in. |
| Warranty | 3 Year |
| Additional Item(s) Included | Pins and clips |
| Application/Use | For use in double or single acting hydraulic applications |
| Bore Diameter | 1-3/4 in. |
| Brand Compatibility | Most application |
| Compatibility | Variety |
| Country of Origin | Imported |
| Extended Length | 45.25 in. |
| Product Weight | 34 lb. |
| Maximum Weight Capacity | 5,160 lb. |
| Maximum Operating Pressure | 3,000 PSI |
| Model Compatibility | Most application |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 6 |
| Product Height | 1 in. |
| Product Width | 3 in. |
| Retracted Length | 27.25 in. |
| Rod Diameter | 3 in. |
| Stroke Distance | 18 in. |
| Manufacturer Part Number | 288606 |
