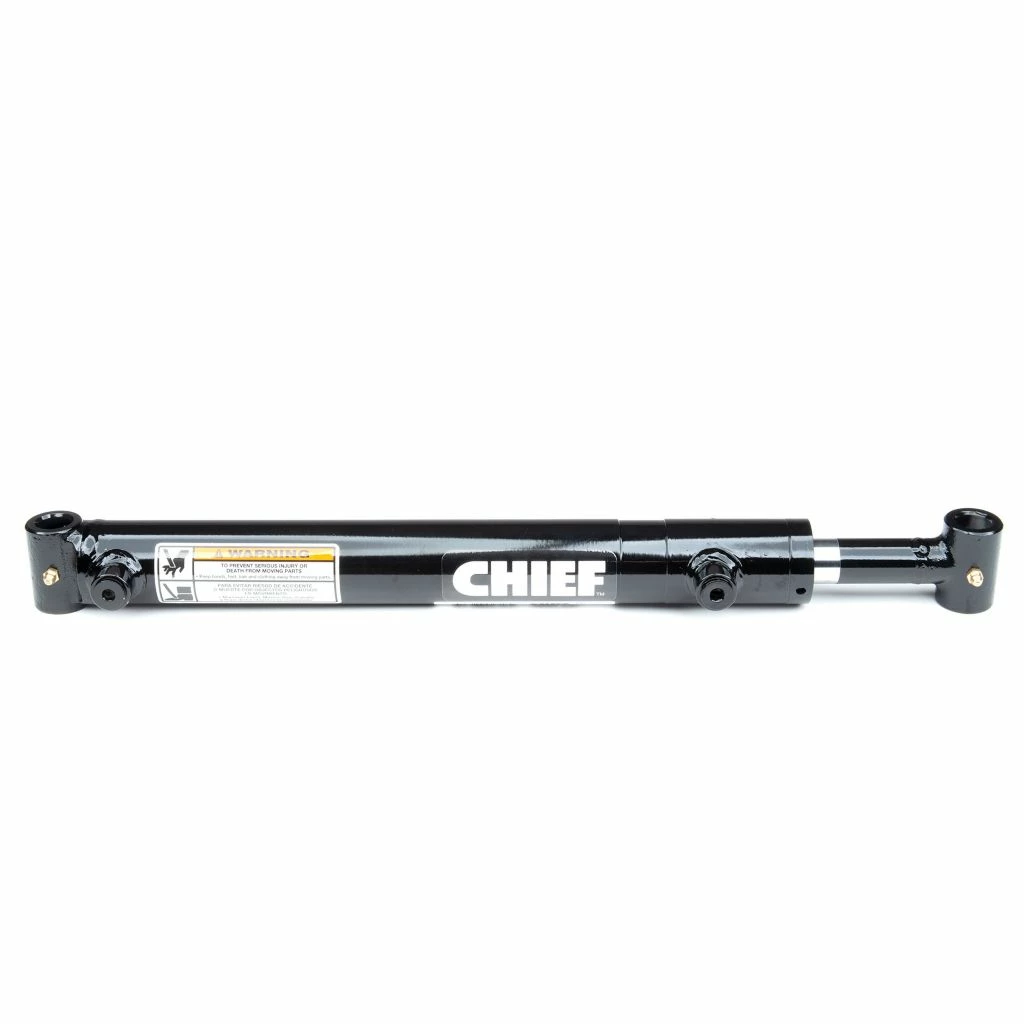

Chief LD Loader Welded Cylinder, 2.5 in. Bore x 24 in. Stroke, 1.5 in. Rod Diameter, 288611
$91.99
- The quality you expect, the service you deserve.
- Quality that lasts, prices that don't.
- 7 days free returns
- Shop with confidence, we guarantee quality.
- This welded cylinder is ideal for construction, agricultural and other applications
- Intended Use: double-acting applications
- Piston: ductile iron
- Gland: ductile iron
- Tube: honed steel
- Rod: hard chrome-plated
- End Mounts: cross-tubes
- Tube Seal: Buna O-ring with polytemp hytrel back-up
- Rod Seal: polyurethane U-cup
- Rod Wiper: polyurethane, snap-in
- Piston Seal: 755 with wear rings, (2 each) wear bearings
- All Seals: manufactured to USA specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Packaging: individually poly bagged
| Brand | Chief |
|---|---|
| Product Weight | 34 lb. |
| Product Length | N/A |
| Warranty | 3 Year |
| Additional Item(s) Included | Pins and clips |
| Application | For use in double or single acting hydraulic applications. |
| Application/Use | For use in double or single acting hydraulic applications |
| Bore Diameter | 2-1/2 in. |
| Brand Compatibility | Most application |
| Compatibility | Most application |
| Country of Origin | Imported |
| Extended Length | 24 in. |
| Hydraulic Cylinder Type | Welded |
| Includes | Pins and clips |
| Material | Steel |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 13,440 lb. |
| Model Compatibility | Most application |
| Package Quantity | 1 |
| Pin Diameter | 1.25 in. |
| Port Size | SAE 8 |
| Product Height | N/A |
| Product Width | N/A |
| Retracted Length | 37 in. |
| Rod Diameter | 3-1/2 in. |
| Special Feature | Welded loader cylinder with crosstube mounts |
| Stroke Distance | 24 in. |
| Type | Loader Hydraulic Cylinder |
| Manufacturer Part Number | 288611 |
