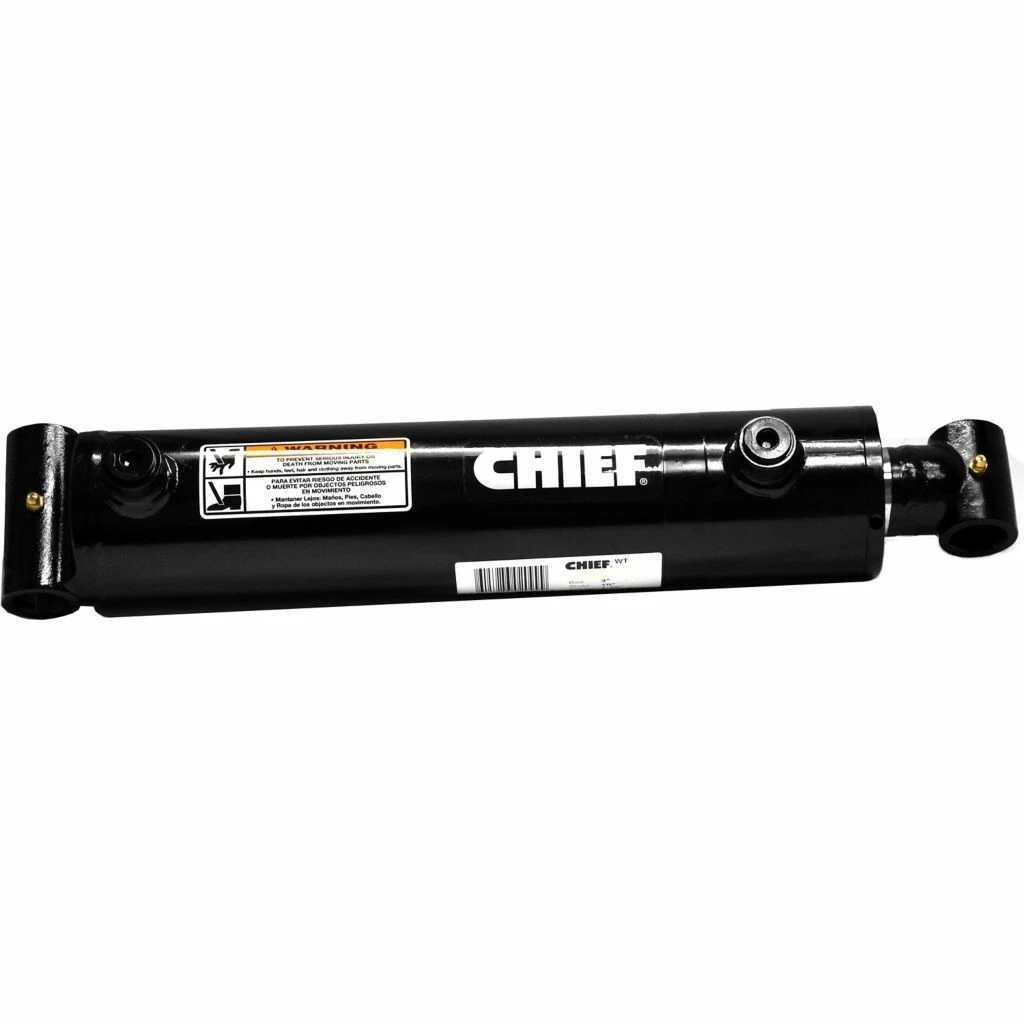

Chief WT Welded Cylinder, 2 in. Bore x 10 in. Stroke, 1.25 in. Rod Dia.

The Chief 212703 WT Welded Hydraulic Cylinder is a high-quality welded cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the Chief hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end. These welded hydraulic cylinders are ideally suited for construction and agricultural applications – as they make great farm hydraulic cylinders – as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing. Includes SAE O-ring port hookups on small bores and NPT on large bores.

• Intended Use: double-acting applications
• Piston: ductile iron with wear ring(s)
• Gland: ductile iron, screw-in design with wear ring
• Tube: precision-honed steel welded crosstube
• Rod: ground and polished chromed steel, minimum 75,000 PSI yield
• Butt Plate: steel
• End Mounts: steel cross-tubes with grease zerk
• Spacer Tube: steel on 48 in. stroke and above
• Gland Seal: polyurethane U-cup
• Wiper: polyurethane
• Piston Seal: 755 Hallite with wear ring(s)
• All Other Seals: selected and designed for maximum life
• Chief hydraulic cylinders are functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
• 3,000 PSI operating range on WT welded hydraulic cylinders
• Models with 5″, 6″ and 8″ bores have an externally mounted retainer ring
• SAE O-ring ports
• Black paint finish
• Suitable for a variety of applications and make great farm hydraulic cylinders
• Made in USA

Note: This product may require up to 2 additional days for order processing prior to shipping
