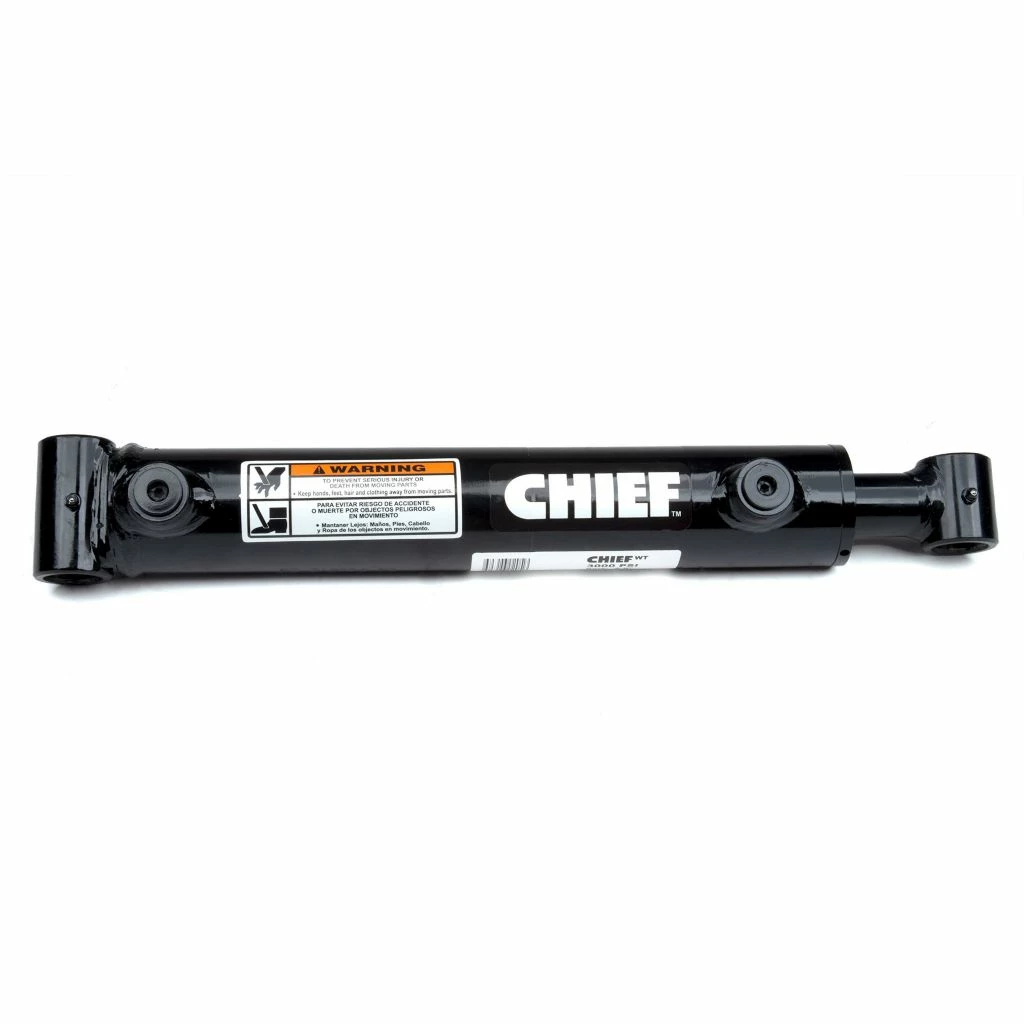

Chief WT Welded Cylinder, 2 in. Bore x 6 in. Stroke, 1.25 in. Rod Dia., 212701
$95.99
- The quality you expect, the service you deserve.
- Quality that lasts, prices that don't.
- 7 days free returns
- Shop with confidence, we guarantee quality.
- This welded cylinder is intended to be used in double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel, minimum 75,000 PSI yield
- Butt Plate: steel
- End Mounts: steel cross-tubes with grease zerk
- Spacer Tube: steel on 48 in. stroke and above
- Gland Seal: polyurethane U-cup
- Wiper: polyurethane
- Piston Seal: 755 Hallite with wear ring(s)
- All Other Seals: selected and designed for maximum life
| Brand | Chief |
|---|---|
| Product Weight | 10.58 lb. |
| Product Length | N/A |
| Warranty | 3 Year |
| Additional Item(s) Included | No |
| Application/Use | For use in double or single acting hydraulic applications. |
| Bore Diameter | 2-1/2 in. |
| Brand Compatibility | most application |
| Compatibility | Most application |
| Country of Origin | Imported |
| Extended Length | 6 in. |
| Hydraulic Cylinder Type | Welded |
| Material | Steel |
| Maximum Operating Pressure | 3000 PSI |
| Maximum Weight Capacity | 14721 lb. |
| Model Compatibility | most application |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Product Height | N/A |
| Product Width | N/A |
| Retracted Length | 13 in. |
| Rod Diameter | 1-1/2 in. |
| Stroke Distance | 6 in. |
| Manufacturer Part Number | 212701 |
