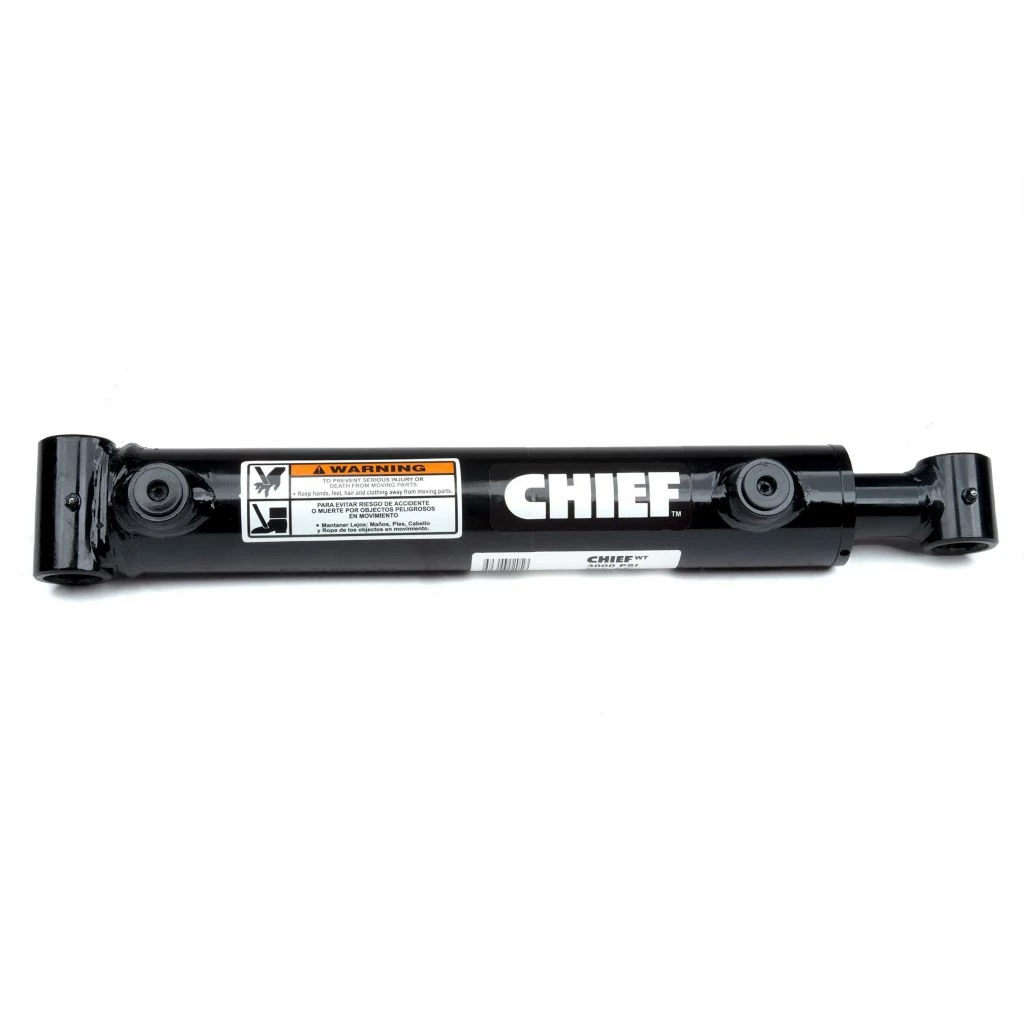

Chief WT Welded Hydraulic Cylinder, 3.5 in. Bore x 10 in. Stroke, 2 in. Rod Diameter, 212745
$92.99
- The quality you expect, the service you deserve.
- Quality that lasts, prices that don't.
- 7 days free returns
- Shop with confidence, we guarantee quality.
- Intended Use: double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel, minimum 75,000 PSI yield
- Butt Plate: steel
- End Mounts: steel cross-tubes with grease zerk
- Spacer Tube: steel on 48 in. stroke and above
- Gland Seal: polyurethane U-cup
- Wiper: polyurethane
- Piston Seal: 755 Hallite with wear ring(s)
- All Other Seals: selected and designed for maximum life
- Chief hydraulic cylinders are functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
- 3,000 PSI operating range on WT welded hydraulic cylinders
- Models with 5 in.”, 6 in.” and 8 in.” bores have an externally mounted retainer ring
- SAE O-ring ports
- Black paint finish
- Suitable for a variety of applications and make great farm hydraulic cylinders
- Made in USA
Note: This product may require up to 2 additional days for order processing prior to shipping
| Brand | Chief |
|---|---|
| Product Weight | 34 lb. |
| Product Length | N/A |
| Warranty | 3 Year Limited |
| Additional Item(s) Included | No |
| Application | For use in double or single acting hydraulic applications. |
| Application/Use | For use in double or single acting hydraulic applications |
| Bore Diameter | 3-1/2 in. |
| Brand Compatibility | Most application |
| Compatibility | Tractors |
| Country of Origin | Made in USA |
| Extended Length | 28 in. |
| Material | Steel |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 28,860 lb. (column load) |
| Model Compatibility | Most application |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Product Height | 4 in. |
| Product Width | 2.5 in. |
| Retracted Length | 18 in. |
| Rod Diameter | 2 in. |
| Special Feature | Welded crosstube |
| Stroke Distance | 10 in. |
| Type | Welded Hydraulic Cylinder |
| Manufacturer Part Number | 212745 |
