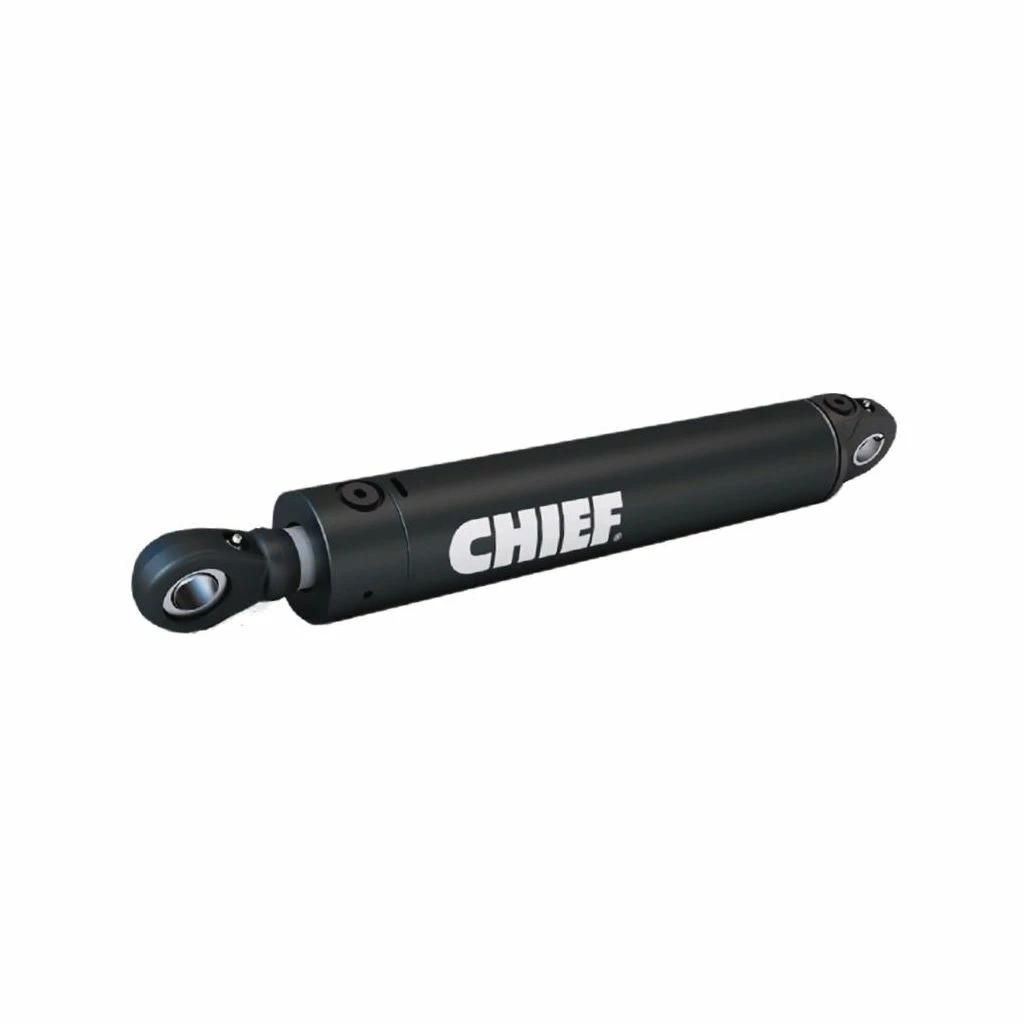

Chief WTG Welded Tang Cylinder, 4 in. Bore x 30 in. Stroke, 2 in. Rod Dia., 400710
$92.99
- The quality you expect, the service you deserve.
- Quality that lasts, prices that don't.
- 7 days free returns
- Shop with confidence, we guarantee quality.
- This welded cylinder is intended to be used in double-acting applications
- Piston: ductile iron, thread-on with wear ring
- Gland: keyed joint, ductile iron
- Tube: precision-honed steel
- Rod: induction-hardened, hard chrome-plated
- Rod End Mount: cast 1045 steel, welded-on
- Spherical bearing with retaining ring
- 1/8 NPT grease zerk
- Base End Mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
- Tube Seal: Buna O-ring with polytemp hytrel backup
- Rod Seal: deep polypak with B-lip design
- Rod Wiper: urethane, snap-in
- Piston Seals: Hallite 755 for prolonged wear resistance, with wear ring
- All Seals: manufactured to U.S. specifications
- Ports: SAE O-ring
- Paint: black; custom colors are available
| Brand | Chief |
|---|---|
| Includes | Pins and clips |
| Warranty | 3 Year |
| Additional Item(s) Included | Pins and clips |
| Application | For use in double or single acting hydraulic applications. |
| Application/Use | For use in double or single acting hydraulic applications. |
| Bore Diameter | 3 in. |
| Country of Origin | Made in USA |
| Extended Length | 30 in. |
| Hydraulic Cylinder Type | Welded |
| Product Weight | 88 lb. |
| Maximum Operating Pressure | 3600 PSI |
| Material | Steel |
| Maximum Weight Capacity | 35690 lb. |
| Package Quantity | 1 |
| Pin Diameter | 1-1/4 in. |
| Port Size | SAE 8 |
| Rod Diameter | 2 in. |
| Special Feature | Welded cylinder with tang mounts |
| Stroke Distance | 30 in. |
| Type | Welded Hydraulic Cylinder |
| Manufacturer Part Number | 400710 |
