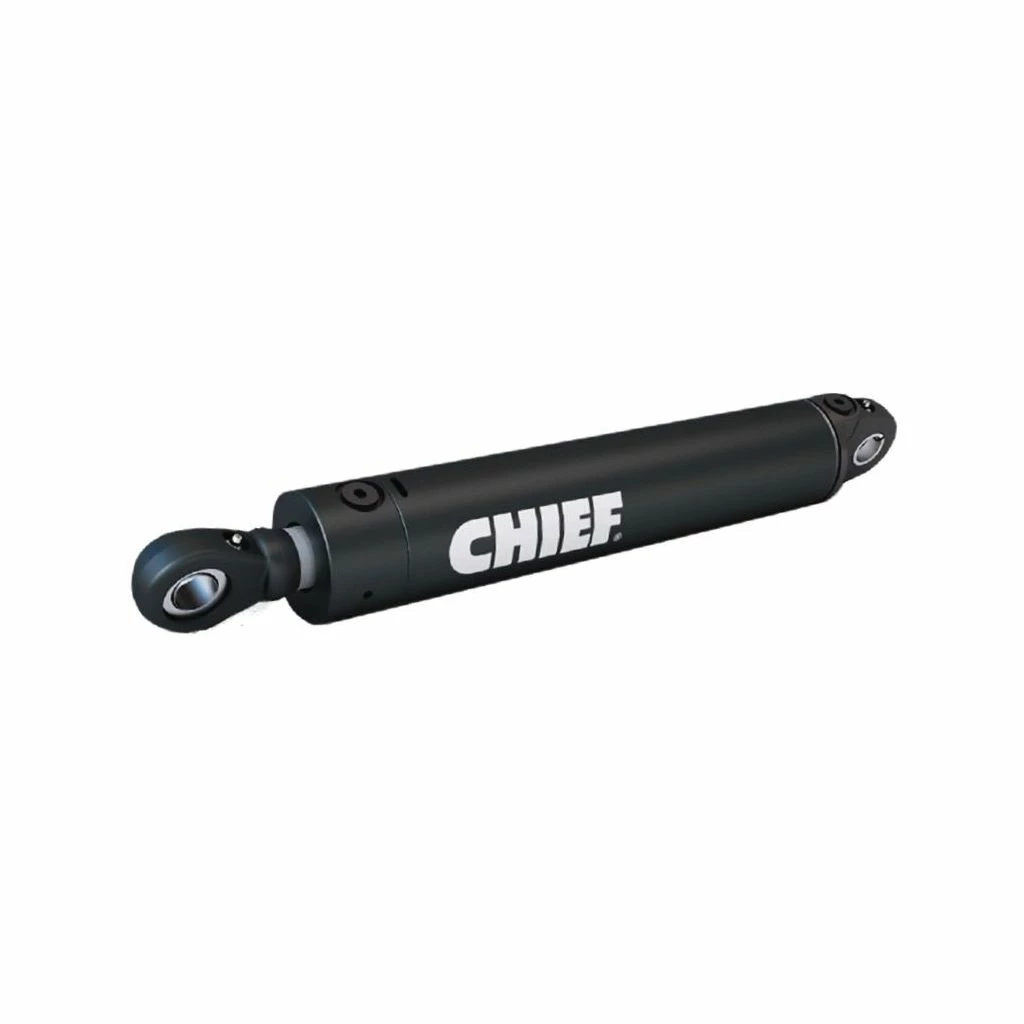

Chief WTG Welded Tang Cylinder, 3 in. Bore x 36 in. Stroke, 1.5 in. Rod Dia., 400665

The Chief 400665 WTG Welded Tang Cylinder with 3 in. Bore x 36 in. Stroke and 1.5 in. Rod Diameter is Chief’s newest hydraulic cylinder line and is also one of their most durable cylinders. The WTG is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. The WTG can utilize a spherical ball or steel bushing insert to improve wear life. Tang cylinders are most commonly used in heavy-duty construction equipment.

• This welded cylinder is intended to be used in double-acting applications
• Piston: ductile iron, thread-on with wear ring
• Gland: keyed joint, ductile iron
• Tube: precision-honed steel
• Rod: induction-hardened, hard chrome-plated
• Rod End Mount: cast 1045 steel, welded-on
• Spherical bearing with retaining ring
• 1/8 NPT grease zerk
• Base End Mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
• Tube Seal: Buna O-ring with polytemp hytrel backup
• Rod Seal: deep polypak with B-lip design
• Rod Wiper: urethane, snap-in
• Piston Seals: Hallite 755 for prolonged wear resistance, with wear ring
• All Seals: manufactured to U.S. specifications
• Ports: SAE O-ring
• Paint: black; custom colors are available
