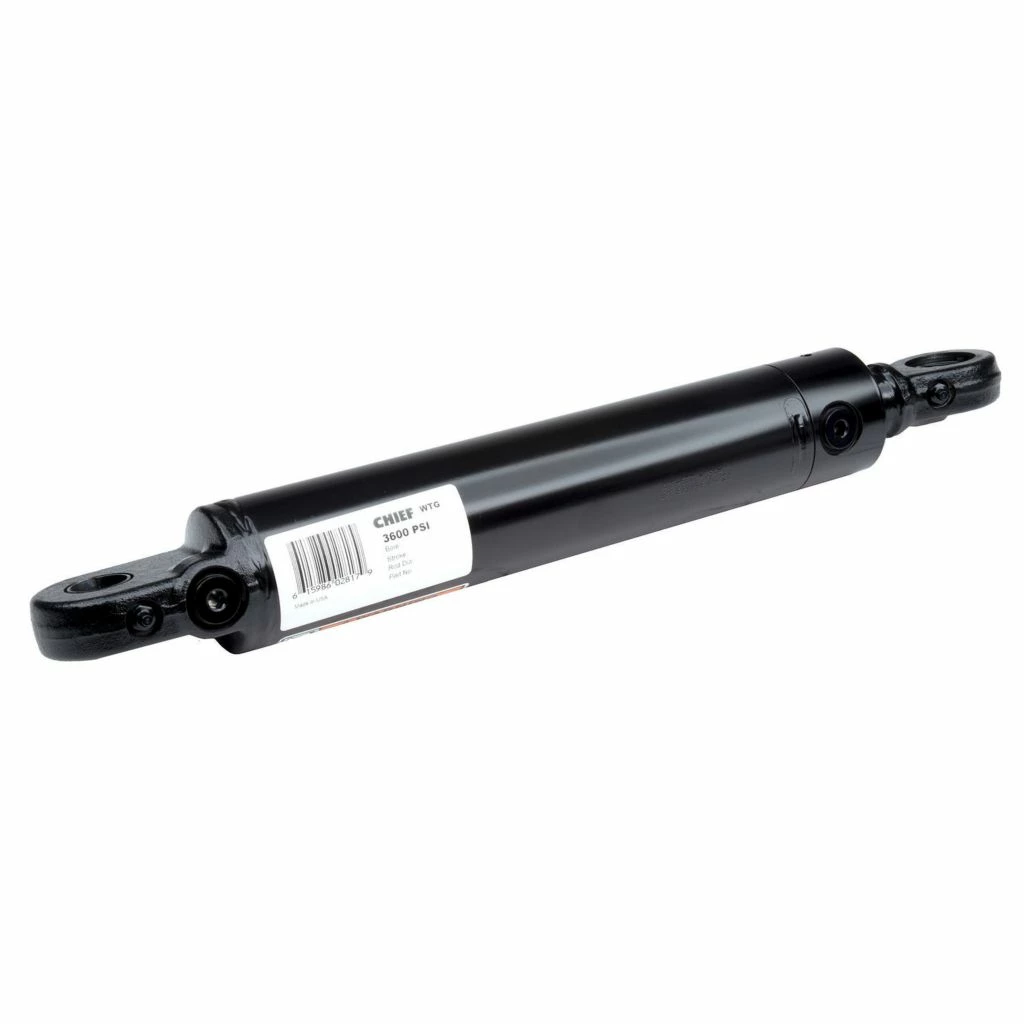

Chief WTG Welded Tang Hydraulic Cylinder, 2.5 in. Bore x 10 in. Stroke, 1.375 in. Rod Diameter, 400637

The Chief WTG Welded Tang Hydraulic Cylinder is a new Chief hydraulic cylinder line and is also one of their most durable cylinders. The WTG is sometimes referred to as a lug end cylinder, due to its 1 pc. lug mount welded to both the rod and base ends. The WTG can utilize a spherical ball or steel bushing insert to improve wear life. Tang double acting hydraulic cylinders are most commonly used in heavy-duty construction equipment.

• Intended Use: double acting hydraulic cylinder
• Piston: ductile iron, thread-on with wear ring
• Gland: keyed joint, ductile iron
• Tube: precision-honed steel
• Rod: induction-hardened, hard chrome-plated
• Rod End Mount: cast 1045 steel, welded-on
• Spherical bearing with retaining ring
• 1/8 NPT grease zerk
• Base End Mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
• Tube Seal: Buna O-ring with polytemp hytrel backup
• Rod Seal: deep polypak with B-lip design
• Rod Wiper: urethane, snap-in
• Piston Seals: Hallite 755 for prolonged wear resistance, with wear ring
• All Seals: manufactured to U.S. specifications
• Ports: SAE O-ring
• Paint: black; custom colors are available
• 3,600 PSI pressure rating
• Forged steel tang mountings with integral heavy-duty bushings
• 360° rotating gland
• Every Chief hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
• 3-year limited warranty on hydraulic cylinders

Note: This product may require up to 2 additional days for order processing prior to shipping
